Fully Automatic Calorimeter
IC 340

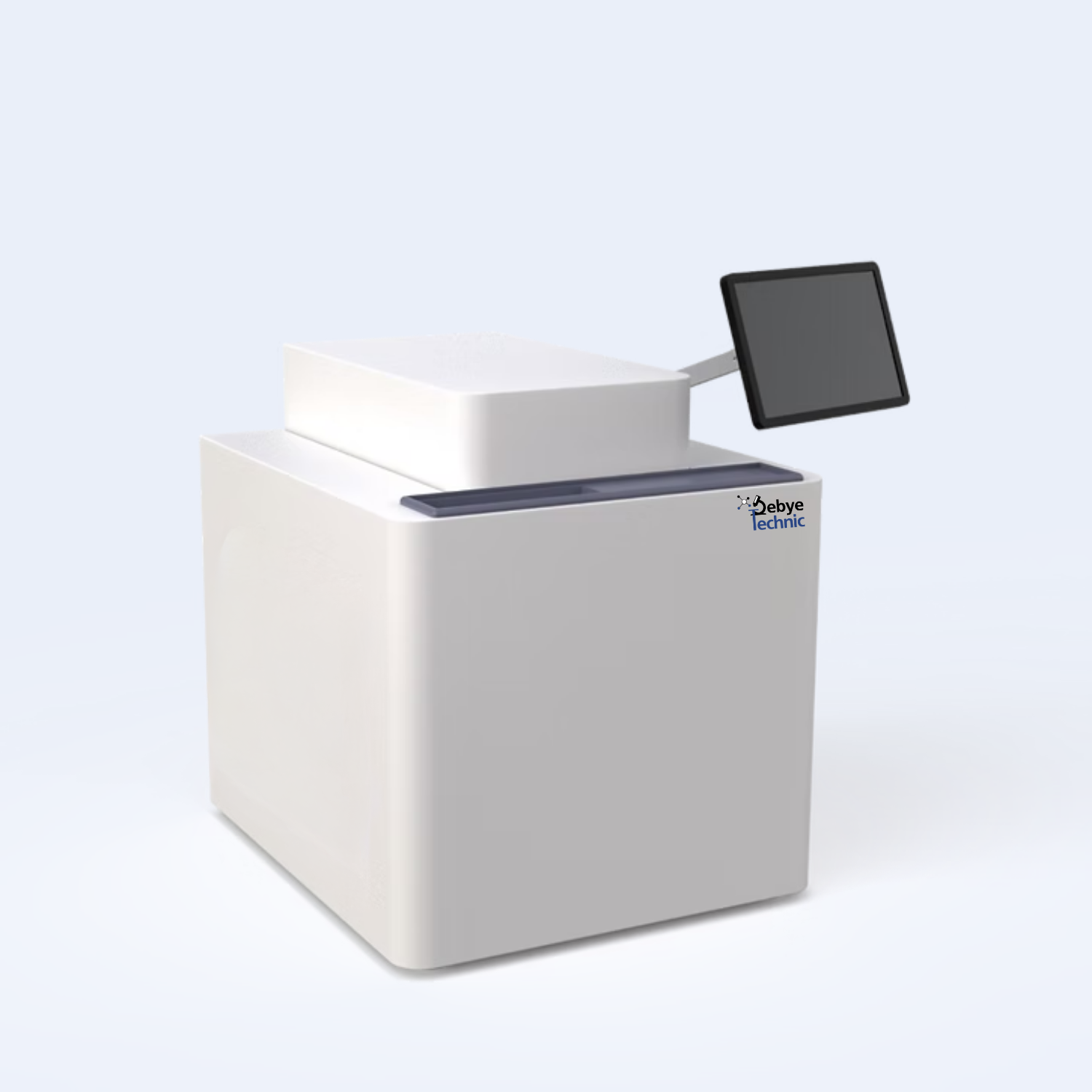

Fully Automatic Calorimeter IC 340

Fully Automatic Calorimeter IC 340

About

The IC 340 is a new-generation fully automatic bomb calorimeter designed to measure the energy (calorific) value of solid and liquid samples with high precision. By managing the entire analysis process independently without the need for an external computer, it maximizes operational efficiency in your laboratory.
Independent Data Management:
It makes data analysis and reporting highly practical by exporting your fast and reliable results directly into Excel and PDF formats.
Full Automation:
Equipped with an integrated automatic oxygen filling and discharging system, the IC 340 significantly shortens analysis time and reduces operator workload to zero.
Wide Application Range:
Thanks to its advanced analysis chamber, it enables the most effective and accurate measurements, even with low-calorie materials.
Comprehensive Combustion Analysis:
In addition to determining pre-combustion energy values, it also detects post-combustion ash content. This allows it to analyze combustion efficiency and ensure the most effective use of energy resources.

Request a quote
otomatik kalorimetre

How automatic calorimeter works?

Fully automatic calorimeters are advanced laboratory instruments designed to measure the energy (heat) value of various sample types with high accuracy. The measurement process is carried out through the following standard steps without any user intervention:

  • Controlled Combustion: The sample is burned in a controlled manner within a pressure-resistant analysis chamber under a pure oxygen atmosphere.
  • Temperature Monitoring: The heat released during combustion raises the temperature of the water surrounding the analysis chamber. By tracking this temperature change, the device automatically calculates the sample's energy value.
  • Process Automation: The device executes water filling and draining, oxygen management, lid opening-closing operations, and ignition stages entirely under its own control.

This advanced automation system standardizes the measurement process, making it safe and highly reproducible (RSD), while minimizing operator workload and elevating your laboratory operations to the next level.

Özellik / Feature Değer / Value
Aksesuarlar / AccessoriesStandart Paket / Standard Package
PC Yazılımı / PC SoftwareOpsiyonel / Optional
Su Sirkülatörü / Water CirculatorOpsiyonel / Optional
Dil / LanguageTR / EN
Arayüz / InterfaceUSB Type-C / USB Type-C
Analiz Standartları / Analysis According ToISO 1928, ISO 18125, ISO 9831, ISO 1716, ASTM D5865, ASTM D5468, ASTM D4809, ASTM D240, ASTM E711, DIN 51 900
Halojen Ayrışma Kabı / Halogen Decomposition VesselOpsiyonel / Optional
Gaz Tahliye / DegasificationAutomatic / Otomatik
Oksijen Dolumu / Oxygen FillingAutomatic / Otomatik
Su Filtrasyonu / Water FiltrationDahil / Included
Soğutma / Isıtma Ortamı / Cooling / Heating MediumSu Sirkülatörü / Water Circulator
Nominal Gerilim / Rated Voltage120 V veya 220 V / 120 V OR 220 V
Çalışma Oksijen Basıncı / Operating Oxygen Pressure30-40 bar
Tekrarlanabilirlik / ReproducibilityRSD < 0.05%
Ölçüm Aralığı / Range of Measurement40000 J
Operatör Hazırlık Süresi / Preparation Time for Operator~ 2 dakika / ~ 2 min
Sıcaklık Ölçüm Çözünürlüğü / Temperature Measurement Resolution0.0001 K
Ölçüm Modu / Measuring Modeİzoperibol / Isoperibol
Su Dolumu ve Boşaltma / Water Filling and DrainingOtomatik / Automatic
Ateşleme / IgnitionOtomatik / Automatic
Analiz Süresi / Analysis Duration8 dk veya 14 dk / 8 min OR 14 min
Kalorimetre IC 340 Broşür -TR
Calorimeter IC 340 -EN
