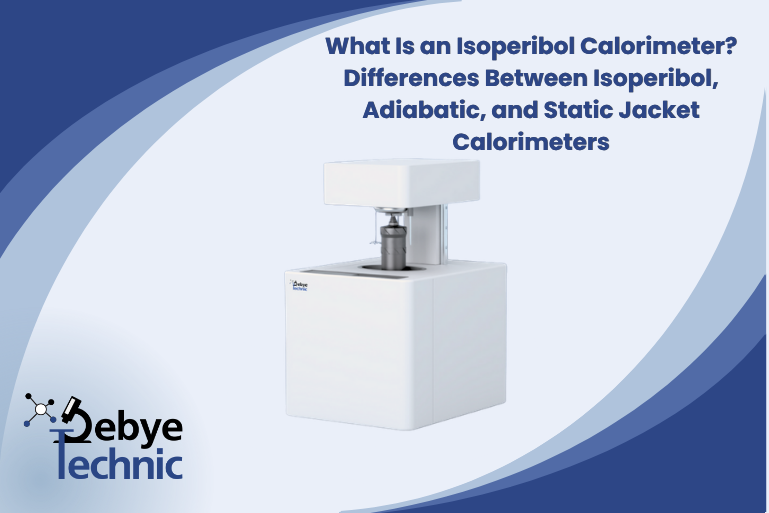

What Is an Isoperibol Calorimeter? Differences Between Isoperibol, Adiabatic, and Static Jacket Calorimeters

An isoperibol calorimeter is the most accurate modern bomb calorimeter. It keeps the outer jacket temperature constant and automatically corrects the small heat losses that occur using mathematical algorithms such as the Regnault-Pfaundler method. An adiabatic calorimeter physically prevents heat transfer by matching the jacket temperature to the inner vessel; a static jacket calorimeter is a simple, passively insulated system with no active control. For serial testing, high throughput, and compliance with ASTM D5865 / ISO 1928, the most suitable technology is the isoperibol calorimeter.

In bomb calorimeters, the single most important factor determining measurement precision is the design of the thermodynamic jacket. Whether you are determining the energy content (calorific value) of coal, biomass, RDF (refuse-derived fuel), or liquid fuels, choosing the right system for your laboratory matters. Below we examine in detail the working principles and operational differences of these three technologies — isoperibol, adiabatic, and static.

Why Does Thermodynamic Jacket Design Matter?

When combustion takes place in a bomb calorimeter, the released heat warms the water in the analysis vessel (reactor). Sensors measure this temperature rise to calculate the fuel's calorific value (gross calorific value / GCV). However, by the laws of thermodynamics, a heated substance always transfers heat to a cooler surrounding environment (heat leak).

If this heat loss is not controlled or accurately accounted for, the measured calorific value will always come out lower than the true value. The outer hardware we call the "jacket" is classified into three technologies — static, adiabatic, and isoperibol — based on the strategy it uses to manage this heat loss.

1. Static Jacket Calorimeters

In static jacket systems, the temperature of the outer shell surrounding the analysis vessel is not actively controlled. The instrument's insulation depends entirely on the ambient temperature of the room and its own insulating material.

Working Principle: No special thermodynamic intervention is made to prevent heat transfer; there is only passive insulation. Advantage: Low production cost and very simple design. Disadvantage: Air-conditioning drafts, opening doors, or seasonal temperature changes in the laboratory directly distort the measurement result; it is the model with the lowest precision and repeatability. Use Case: Generally preferred for basic thermodynamics experiments in education (schools/universities) rather than industrial R&D.

2. Adiabatic Calorimeters

In physics, "adiabatic" means an environment with no heat exchange with its surroundings. These instruments focus on building a physical barrier to prevent heat loss.

Working Principle: As the water in the inner analysis vessel heats up during combustion, the instrument instantly heats the water in the outer jacket as well, bringing it to the same level as the inner vessel. Because the temperature difference between the two zones is kept at zero, heat escape to the environment is prevented. Advantage: Provides direct measurement without the need for correction calculations. Disadvantage: Heating and cooling the outer jacket at the same rate as the inner vessel requires serious electronic/mechanical synchronization; the system is complex, and because it takes a long time for the instrument to return to its starting temperature between consecutive analyses, daily test capacity is low.

3. Isoperibol Calorimeter (The Modern Standard)

Isoperibol technology means "constant surrounding temperature" and is today the system most compliant with ASTM and ISO standards — the backbone of industrial laboratories. Rather than trying to prevent heat loss, an isoperibol calorimeter measures it precisely and factors it in.

Working Principle: The outer jacket temperature is held perfectly constant at a set value (for example, exactly 25 °C), typically by means of a chiller. When combustion begins, the inner vessel heats up and a natural heat leak toward the constant-temperature jacket begins. The instrument does not try to prevent this leak; instead, it calculates the leaked heat using differential equations such as the Regnault-Pfaundler method or Newton's law of cooling, and mathematically adds it back to the final result. Advantage: Because the outer jacket stays at a constant temperature, waiting time between analyses is minimal; dozens of tests can be run per day, results are unaffected by ambient temperature, and it offers the highest measurement stability. Disadvantage: It requires advanced software, a processor, and a precise sensor architecture behind it.

Comparison Table: Isoperibol, Adiabatic, and Static Calorimeters

When planning your laboratory investments and reviewing technical specifications, you can use the comparison table below as a reference.

Frequently Asked Questions (FAQ)

What is the main difference between an isoperibol and an adiabatic calorimeter?An isoperibol calorimeter holds the outer jacket at a constant temperature and mathematically calculates and corrects the heat loss that occurs. An adiabatic calorimeter, on the other hand, matches the outer jacket temperature to the inner vessel to physically prevent heat transfer. Isoperibol systems are much faster for serial testing because the waiting time between analyses is short.

Which calorimeter is used to measure the calorific value of coal and biomass?The gross calorific value of coal, biomass, RDF, and liquid fuels is most often measured in industrial laboratories using an isoperibol calorimeter. Its high precision and full compliance with the ASTM D5865 and ISO 1928 standards have made this technology the standard in energy analysis.

Which standards does an isoperibol calorimeter comply with?Isoperibol calorimeters fully comply with the ASTM D5865 and ISO 1928 standards and meet the requirements of laboratories with ISO/IEC 17025 accreditation.

Why is a static jacket calorimeter less precise?In a static jacket calorimeter, the outer jacket temperature is not actively controlled. As a result, changes in room temperature, air-conditioning drafts, or door movements are reflected directly in the measurement and reduce repeatability. These systems are generally used for educational purposes.

Conclusion: Why an Isoperibol Calorimeter?

In energy analysis laboratories, daily test volume, speed, and 100% standards compliance determine operational profitability. By keeping the outer jacket constant, an isoperibol calorimeter maximizes analysis speed while eliminating measurement uncertainties through advanced software algorithms. For a high-capacity, accredited laboratory, the right choice is isoperibol technology.

Thanks to their flawless mechanical design, automatic temperature control, and high-precision sensors, Debye Technic IC Series Isoperibol Calorimeters minimize human error in your waste, coal, biomass, and liquid fuel analyses. Contact us for detailed information about our solutions that will confidently carry your laboratory capacity to international standards (ISO/IEC 17025).

‍
