What is a Fully Automatic Calorimeter? A Guide to High Precision in Isoperibol Analysis
Calorimeters are used in laboratory environments to determine the calorific value of solid and liquid samples. When analyzing the energy content of a wide variety of samples such as coal, coke, wood, liquids, food, explosives, and waste biofuels, the most critical point is to obtain results free from human error.
Fully automatic operation, which carries out every stage of the test independently of the operator, is vital for laboratory efficiency. So, what technical criteria should you consider when choosing the right device for your laboratory?
1. Operator-Free Automation Process
In a true fully automatic calorimeter, there should be no manual operations left for the operator to perform once the sample is placed in the device. In a high-end system:
- Water Filling and Draining: Performed automatically by the device.
- Gas Management: Oxygen filling and the discharge of the analyzed gas are carried out automatically.
- Ignition: The ignition process is managed entirely by an automatic system, not by manual buttons.
2. Temperature Measurement Resolution and Reproducibility
At the core of calorific value calculation lies the precise measurement of temperature rise (ΔT). Professional devices operating in isoperibol measurement mode use special water circulators (heater/chiller) to exclude environmental factors.
- For precise analyses, the temperature measuring instrument of the device must be a digital sensor and have a temperature measurement resolution of 0.0001 K.
- Providing a temperature stability of ±0.03 by the water circulator prevents deviations in consecutive tests.
- Thanks to all this automation and precision, an excellent reproducibility rate such as RSD <0.05% is achieved in the analyses.
3. Time Saving in Laboratory Workflow
In semi-automatic systems, the operator has to wait by the device. However, fully automatic systems free up the time of laboratory personnel.
- In a fully automatic system, the preparation time for the operator takes only ~2 minutes.

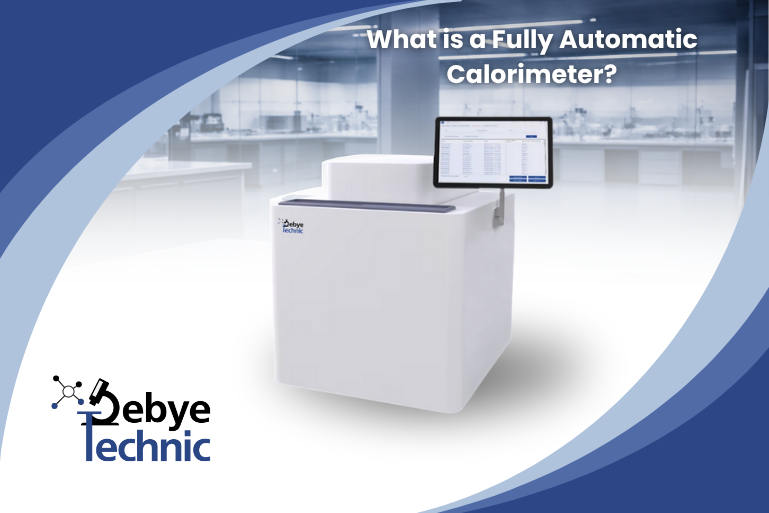

- In the Debye Technic IC 340 Fully Automatic Calorimeter model, the total analysis time is completed between 8 and 14 minutes depending on the selected mode.
- Thanks to our software technology, it is possible to use the software even while the analysis is ongoing. Operations such as recalculating previous analyses, encrypting log files, and exporting Excel/PDF are easily managed.
4. Full Compliance with International Standards
The industrial validity of a calorimeter is measured by the test standards it meets. You should ensure that your device meets all the requirements of global standards such as ISO 1928, ISO 18125, ASTM D5865, ASTM D240, and DIN 51 900.
Zero Compromise in Analysis with Debye Technic
As Debye Technic, we meet the precision and speed expectations of your laboratory with the Fully Automatic Calorimeter IC 340 model. Providing fully automatic operation for more precise calorific value measurements, our systems feature a new design combined with our renewed software technology. For detailed information, you can contact our expert team via www.debyetechnic.com.
Frequently Asked Questions (FAQ)
What is the fundamental difference between a fully automatic and a semi-automatic calorimeter?
The most basic difference is operator independence. While at least one of the steps such as filling or draining water, pressurizing oxygen, or ignition is done manually in semi-automatic systems; in true fully automatic calorimeters (like the IC 340), all these processes are carried out automatically by the device after the sample is inserted.
How long is the operator preparation time in a fully automatic calorimeter?
Thanks to advanced automation, it takes only about 2 minutes for the operator to prepare the sample and place it in the device. All remaining stages of the analysis (ignition, gas, and water management) are completed automatically by the device itself.
Why is the automatic filling and draining of the Analysis Chamber important?
Filling the water with exactly the same volume and temperature in every analysis is a critical factor for the repeatability (RSD) of the test. Manual water filling is open to human error and leads to measurement deviations. Automatic systems eliminate this human factor, ensuring maximum stability.
What is the average analysis time of an isoperibol calorimeter?
In advanced isoperibol calorimeters, the analysis time usually concludes quickly, taking between 8 to 14 minutes depending on the sample's characteristics.
What should be the measurement precision (repeatability) of a calorimeter?
High-precision devices recognized by international standards should offer a repeatability of RSD <0.05% and have a temperature measurement resolution of 0.0001 K to capture even the slightest heat changes.
How is compliance with standards like ISO 1928 achieved in fully automatic systems?
Standards such as ISO 1928 and ASTM D5865 require environmental tolerances during the test to be kept very strict. Thanks to their closed systems sealed against external interference, fully automatic calorimeters provide the strict conditions required by these standards without exception in every test.
Still have questions?
To learn more technical details about our fully automatic calorimeter technologies and integration processes suitable for your laboratory infrastructure, you can contact us to get direct support from our engineering team.
